The production of high quality VITROVEX deep-sea enclosures requires appropriate tools for testing. Nautilus Marine Service operates a hydrostatic pressure chamber for this purpose and offers its services including certification to third parties also.

The production of custom-built pressure housings made of glass often requires the design of individual interface components or other accessories made of non-glass items. Over the recent years, Nautilus Marine Service has adopted a strong position on that subject and we can offer extensive knowledge including finite element analysis (FEA) and all our experience to potential customers.



Services

Training

more about Training

Pressure Test

more about Pressure Test

Engineering

more about Engineering

Training

Nautilus Marine Service provides training courses for all our available systems and components. Our courses range from simple introductions over hard – and software courses to extensive hydrographic trainings. The latter comprises hydroacoustics, echosounder functionality and calibrations as well as extensive and comprehensible courses of hydrographic software, adapted to the customer’s needs.

Training Courses can be held in German or English.

Pressure Test

All deep-sea applications require high quality and pressure-resistant components. Although computer-based calculations and sophisticated simulation algorithm are available today and certainly help to shorten the development process for such parts, only a test can really prove, that the design is according to specification, the right material has been chosen and that no signs of fatigue over the planned operation period will occur.

Furthermore, during a pressure test, the dynamic performance of a single component as well as of a complex assembly can be monitored and studied. As a result, existing designs can be improved before deployment or optimized after realization of any deficiencies in operation.

Last but not least, pressure tests are often mandatory as part of the certification process to be accomplished by a notified body.

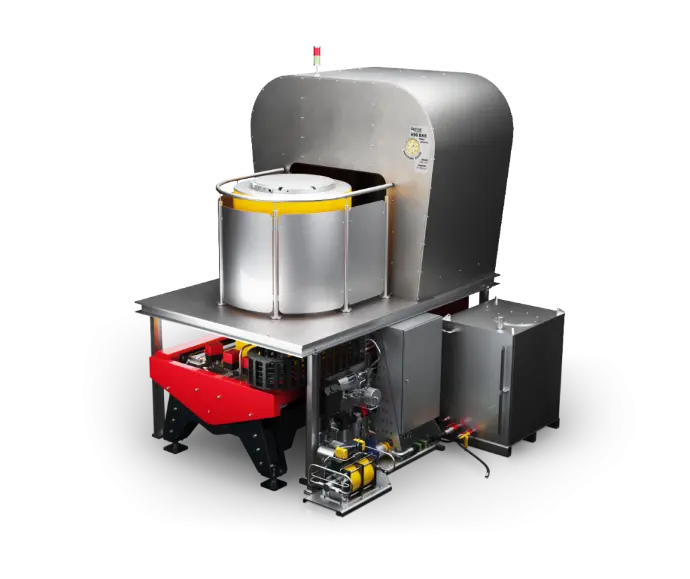

Nautilus Marine Service GmbH operates a pressure test chamber with capability that extends to full ocean depth and beyond, and it has the pressure test chamber available to outside clients also to carry out contracted pressure testing.

The pressure chamber is primary designed to meet the challenging demands for conducting tests on VITROVEX® glass enclosures and related products and has been optimised in terms of speed, accuracy and robustness over traditional pressure test facilities. Please follow us below for a more detailed specification.

Pressure test facility of Nautilus Marine Service – at a glance:

  • Pressure test to 1.300bar (18.850 psi)
  • Inner dimensions: d = 700mm, l = 1400mm
  • Computer-controlled with diagnosis and quality control
  • High speed of opening and closing the lid
  • Programmable pressure gradient and cycles sequences
  • High degree of control accuracy with 0.5 bar
  • Video monitoring and recording
  • Basket to accommodate enclosures with assorted sizes
  • Printed certificate after test or PDF
  • Electrical penetrations to the test object(s)



Engineering

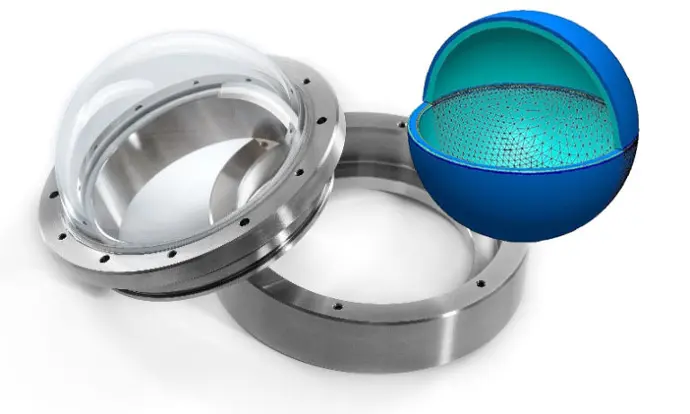

Do you need a comprehensive design that meets specific requirements? Although Nautilus Marine Service is specialized in the production of pressure housings made of glass, we can further advise on high-quality turned and milled parts in complex geometries for pressures vessels in general. In addition to widespread stainless steel, we also support non - ferrous and Titanium alloys as well as high performance plastics.

During the design phase of components and assemblies, strength and lifetime calculations are performed. These calculations will be carried out in accordance with applicable regulations, standards and accepted literature. With the help of the finite element analyses, the actual load conditions can be made visible and multi-axial stress conditions as well as the resulting elastic and plastic deformations become obvious. Due to this, components and assemblies can then be structurally adapted or optimized in detail.

The designs we create are always evaluated in terms of its technical feasibility, economic success and existing risks. Our services in this regard can be scaled and include all necessary technical documentation such as drawings, reports or parts lists as well as detailed requirements related to manufacturing. Upon request, we also take on production and logistics.
